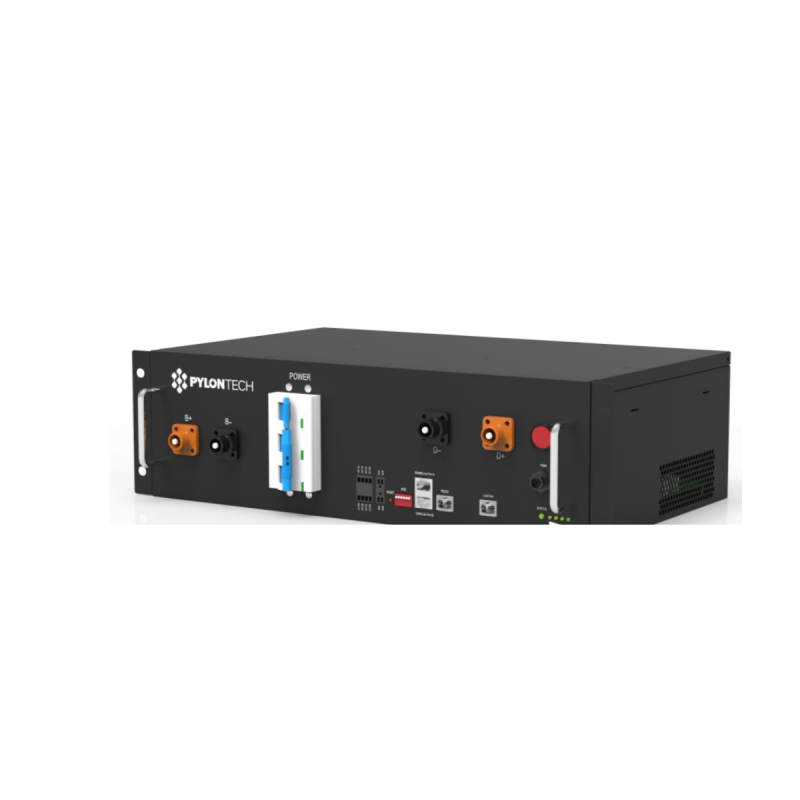

Pylontech SC1000-H / SC1000-100S is the main battery-management and switching controller for a compatible PowerCube H high-voltage rack string. The supplier uses the shorthand SC1000-H; current Pylontech documentation identifies the corresponding PowerCube H controller family as SC1000-100S or SC1000-100.

Controller only, not a battery

This item contains one controller and stores no energy. Battery modules, rack or cabinet, inverter/PCS, power and communication cables, external protection, design, installation and commissioning are separate. The physical model label and revision are confirmed before order acceptance; SC1000A and V2 products are not assumed interchangeable.

Documented controller data

• System family: Pylontech PowerCube H
• Controller working and operating range: 200–1,000 V DC
• Controller maximum charge/discharge current rating: 100 A
• Self-consumption: 8 W
• Dimensions: 442 x 390 x 132 mm
• Weight: 8.5 kg
• Communication: Modbus RTU and CAN
• Protection class: IP20
• Manufacturer-listed certificates: TÜV and CE

The 100 A value is the controller rating, not a guaranteed continuous output of every battery configuration. Permitted current, voltage, capacity and inverter power depend on the exact modules, module count, firmware and approved inverter/PCS combination.

PowerCube H configuration and safety

The current portfolio pairs PowerCube H1 with five to eighteen H48050 modules. The official EU manual also documents PowerCube H2 with H48074 modules. Final compatibility follows the controller label, module generation, firmware and current Pylontech approval. This is a high-voltage DC indoor rack system for restricted-access areas; qualified and authorised personnel must design, wire, protect, ground and commission it.

European clearance stock

The controller is in European clearance stock while supplies last. Before accepting an order we confirm hardware revision, supplied cable scope, serial number, manufacture date, remaining manufacturer warranty and project compatibility because the warranty period may already be running.
