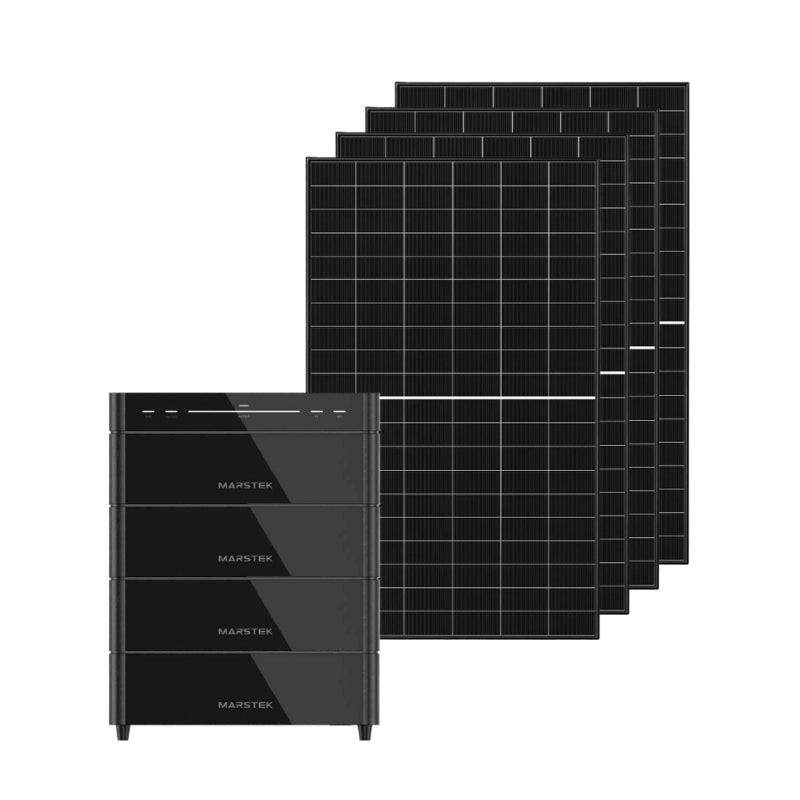

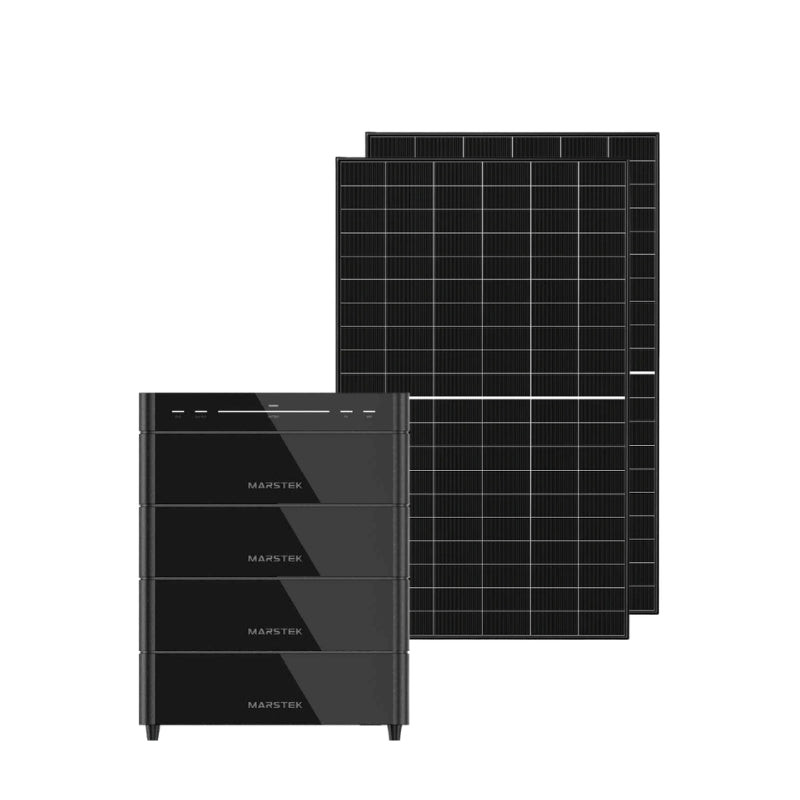

Smart balcony storage with excellent PV utilisation

VENUS A combines four independent MPPT inputs, a LiFePO4 battery and grid and backup power. With a supported smart meter it follows consumption and helps reduce exports and expensive grid purchases.

Key specifications

• 2.12 kWh LiFePO4 battery, 41.6 V, more than 6,000 cycles and 90% depth of discharge
• up to 2.4 kW PV input, four independent MPPTs, 16–60 V range
• up to 20 A per MPPT, 99.8% MPPT efficiency
• 1.5 kVA AC input, 800 VA / 1.5 kVA grid output
• 1.5 kVA backup output
• 0–5 expansion modules for 2.12–12.72 kWh total capacity
• Wi-Fi, Bluetooth and Ethernet, below 30 dB
• IP65, −20 to +60 °C operation
• main unit 450 × 340 × 220 mm, 27 kg

PV configuration, grid connection and the backup circuit must match local requirements and the particular electrical installation.
