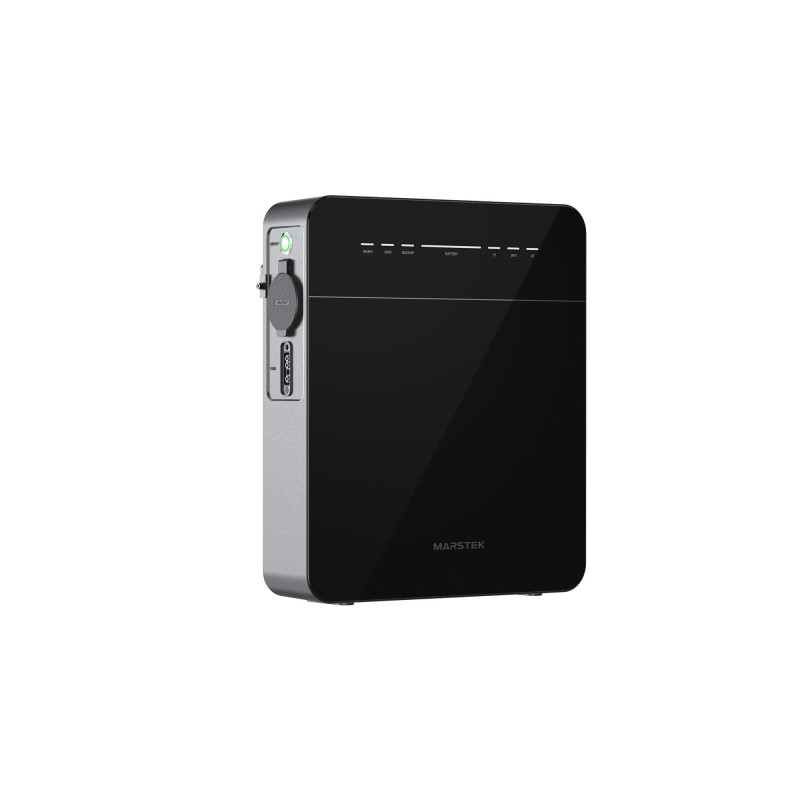

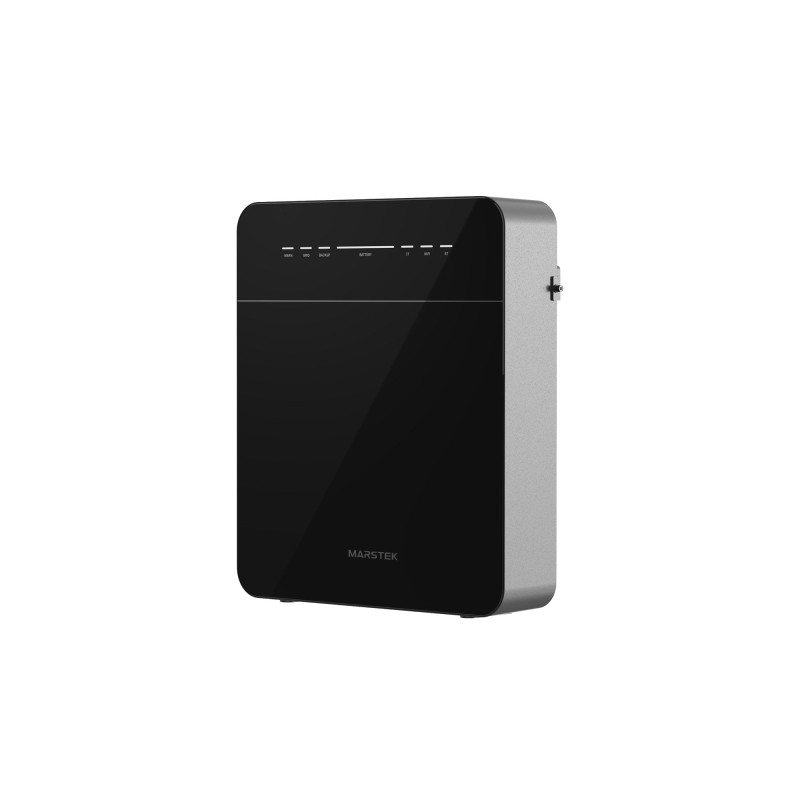

Battery and power electronics in one slim unit
MARSTEK VENUS E Mini is an all-in-one home energy storage system combining an LFP battery, bidirectional AC inverter, controls and backup output. It can store low-cost grid energy or surplus from an existing PV installation for later use.
No separate battery inverter is required. When retrofitted to existing solar, the PV system retains its own solar inverter while VENUS E Mini connects on the AC side in an approved configuration.
Ideal for
- homes seeking compact storage for a 230 V installation
- retrofitting storage to existing PV without replacing its solar inverter
- dynamic tariffs and time-shifting energy use
- backup of selected appliances through the dedicated output
Key specifications
- LiFePO4, 2.0096 kWh nominal and 2 kWh usable
- integrated 1.5 kW bidirectional AC inverter
- 800 VA / 1.5 kVA grid output
- 1.5 kVA backup, 1.8 kVA for 60 seconds
- over 10,000 cycles at 25 °C, 90% depth of discharge
- IP65, passive cooling, −20 to +60 °C
- Wi-Fi, Bluetooth, 386 × 450 × 105 mm, 22 kg
Grid, backup and metering connections must comply with the electrical installation, local regulations and manufacturer instructions.
