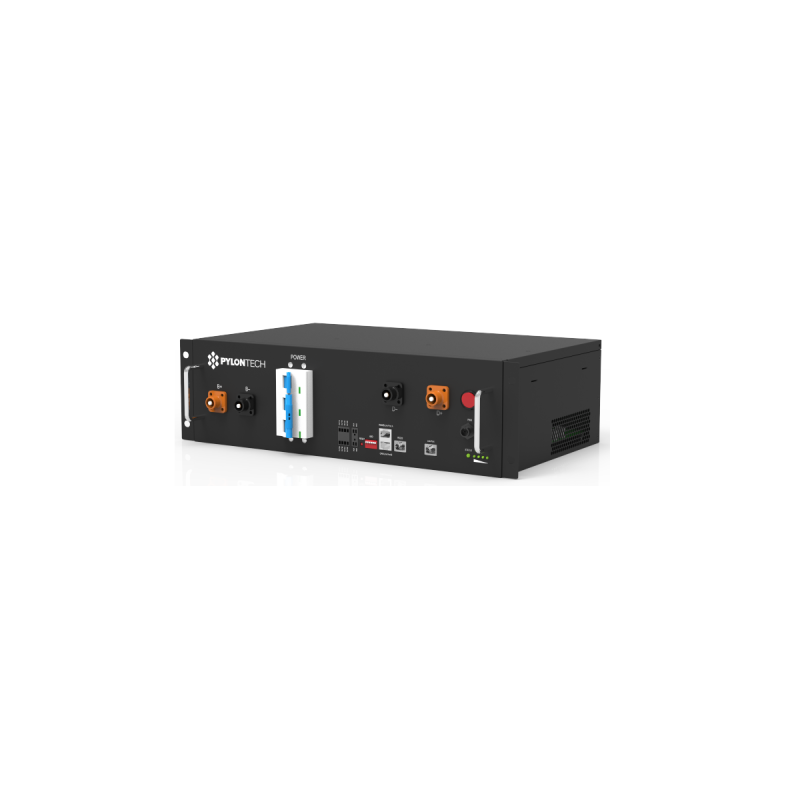

Pylontech SC0500-100S is the main battery-management and switching controller for a compatible PowerCube X1 high-voltage rack string. It supervises the matched series-connected modules and provides the control and communication interface to an approved inverter or PCS.

Controller only, not a battery

This product contains one SC0500-100S controller. It has no energy capacity and is not a complete storage system. Battery modules, rack or cabinet, inverter/PCS, power and communication cables, external protection, engineering, installation and commissioning are selected separately. A PowerCube X1 system must use mutually compatible controller, module and inverter generations.

Documented controller data

• System family: Pylontech PowerCube X1
• Controller working and operating range: 60–600 V DC
• Controller maximum charge/discharge current rating: 100 A
• Self-consumption: 8 W
• Dimensions: 442 x 390 x 132 mm
• Weight: 8.5 kg
• Communication: Modbus RTU and CAN; the current family portfolio additionally lists LAN at system level
• Protection class: IP20
• Manufacturer-listed controller certificates: TÜV and CE

The 100 A value is the controller rating, not a guaranteed continuous power output of every battery configuration. Permitted system current, voltage, capacity and inverter power depend on the exact battery modules, module count, firmware and approved inverter/PCS combination.

PowerCube X1 configuration and safety

The current Pylontech portfolio pairs PowerCube X1 with H48050 modules and lists two to ten modules per string. Exact compatibility must be confirmed from the unit label and current Pylontech documentation before order acceptance; similarly named SC0500, SC0500A and V2 versions are not assumed interchangeable. PowerCube is a high-voltage DC system for restricted-access indoor rack installation. Design, wiring, grounding, protection and service must be performed by qualified and authorised personnel.

European clearance stock

The controller is in European clearance stock while supplies last. Before accepting the order we confirm the exact hardware revision, supplied cable scope, serial number, manufacture date, remaining manufacturer warranty and compatibility with the planned module and inverter generation because the warranty period may already be running.
