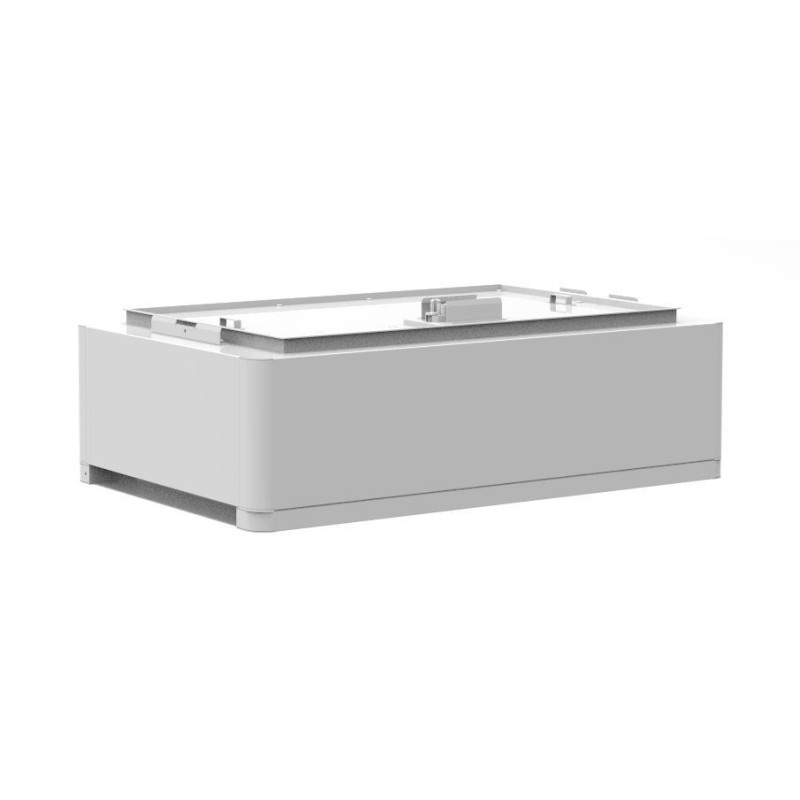

Pylontech Force H1 FH48074 is a 3.552 kWh battery module for the legacy Force H1 modular high-voltage storage platform. Its 48 V, 74 Ah lithium iron phosphate construction is intended for residential and small commercial photovoltaic storage projects assembled from matched Pylontech components.
One battery module, not a complete Force H1 system
This item contains one FH48074 battery module. A working legacy Force H1 tower requires three to seven identical modules, the matching FC0500-40S battery controller, the correct base, a compatible inverter, protection equipment and professional commissioning. The PowerCube-X1 SC0500-100S controller is not specified for this Force H1 module. Later Force H1 V2 controller variants must not be substituted without current Pylontech approval for the exact system.
FH48074 module data
- Cell chemistry: lithium iron phosphate (LiFePO4 / LFP)
- Nominal module energy: 3.552 kWh
- Nominal voltage and capacity: 48 V DC / 74 Ah
- Cell arrangement: 15 cells in series; 3.2 V and 37 Ah per cell
- Dimensions: 600 x 380 x 170 mm
- Weight: 36 kg
- Reference operation cycle life: 5,000 cycles under the manufacturer conditions
- Reference operation life: 15+ years under the manufacturer conditions; this is not a warranty term
- Transport certification: UN38.3
Force H1 system configuration
Three to seven modules produce nominal system capacities from 10.65 to 24.86 kWh and operating voltages from 144 to 336 V. The supplied Force H1 manual specifies 14.8 A standard, 37 A normal and 40 A maximum charge/discharge current for 15 seconds, 96% system efficiency and 90% depth of discharge. Communication is CAN bus / Modbus RTU and the complete correctly assembled system is specified as IP55.
Installation and clearance-stock conditions
The Force H1 manual requires a fixed, load-bearing foundation, suitable ventilation and professional electrical protection. Do not place the system in direct sunlight, immerse it in water or locate its base in rain or another water source; sheltered outdoor installation needs the prescribed elevated base and project-specific weather protection. The module is in European clearance stock. Serial number, manufacture date and remaining manufacturer warranty are confirmed before order acceptance because clearance units may already have a running warranty period.
