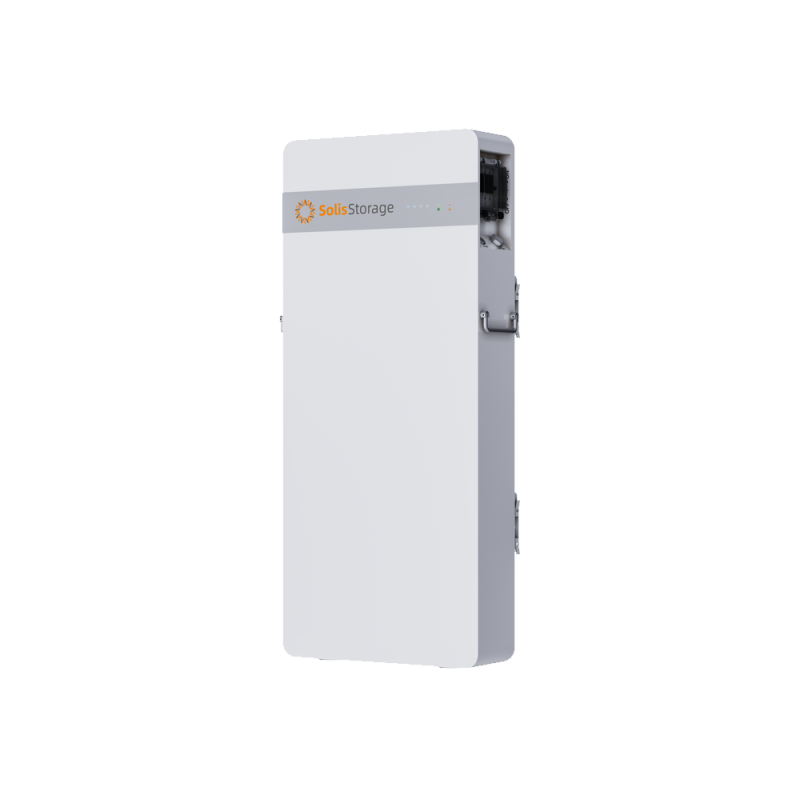

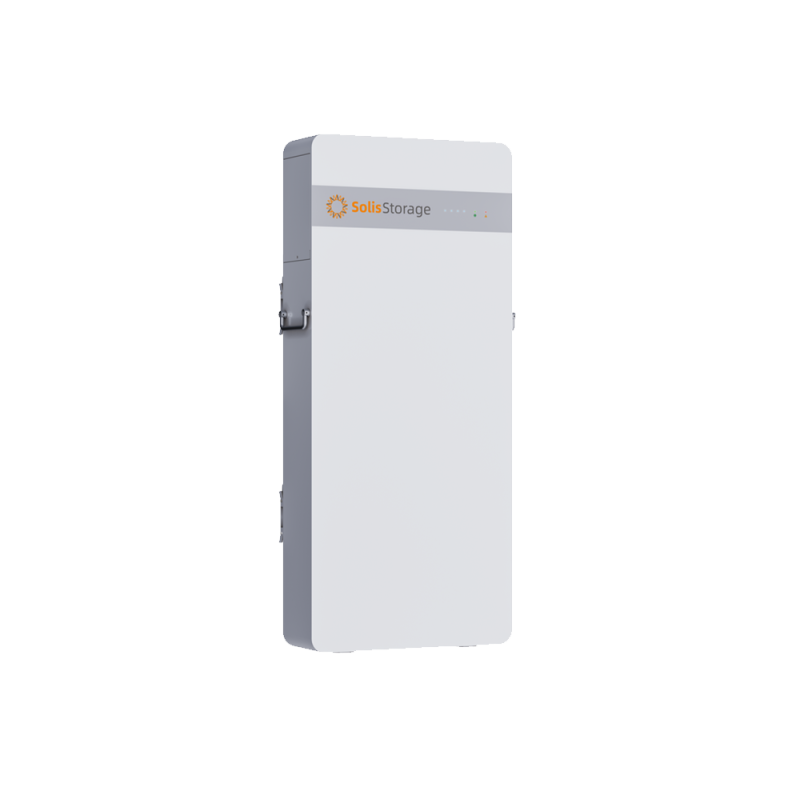

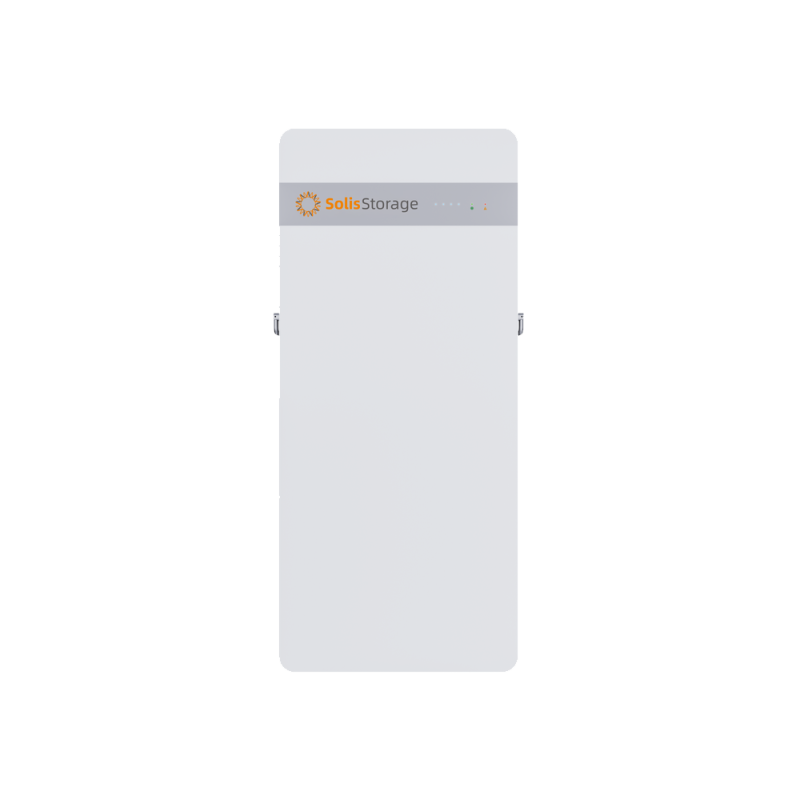

Solis IntelliHome-10kWh-OD is a complete 10 kWh low-voltage LiFePO4 battery for residential solar storage and backup systems. The IP66 enclosure combines cells, battery management, DC breaker, status indication and communications in one floor- or wall-mounted unit.

Key technical data

• Nominal and usable energy: 10.0 kWh
• Cell chemistry: LiFePO4
• Nominal voltage: 51.2 V DC
• Operating range: 44.8–57.6 V DC
• Cell capacity: 100 Ah
• Recommended charge/discharge rate: 0.5C / 0.5C
• Recommended charge/discharge current: 100 A
• Maximum continuous discharge current: 200 A
• Depth of discharge: up to 100% DOD
• Communication: CAN / RS485
• Protection: IP66; anti-corrosion class C5M
• Dimensions: 470 × 1,075 × 175 mm
• Weight: 90 ± 3 kg
• Cooling: natural convection

Ten-kilowatt-hour complete battery

One enclosure is a usable battery rather than a loose expansion module. A correctly engineered system can connect up to eight identical IntelliHome-10kWh-OD units in parallel for 80 kWh. The current Solis documentation specifies at least 6,000 cycles under its stated cell-test conditions; actual service life depends on temperature, power, depth of discharge and operating profile.

Installation and compatibility

Use only with a compatible Solis low-voltage hybrid inverter and the exact firmware and wiring approved in the current compatibility documents. The unit weighs about 90 kg, so transport, wall or floor load, clearances, cable sizes, protection, communications and any parallel layout require a qualified design and mechanical handling. Charging down to −20 °C is supported only with the heating function; output is derated above 45 °C.

Scope

This product is one IntelliHome-10kWh-OD battery unit. Hybrid inverter, external protection, metering, project cabling, structural work, transport to the final position, installation and commissioning are separate unless stated in a project quotation.
