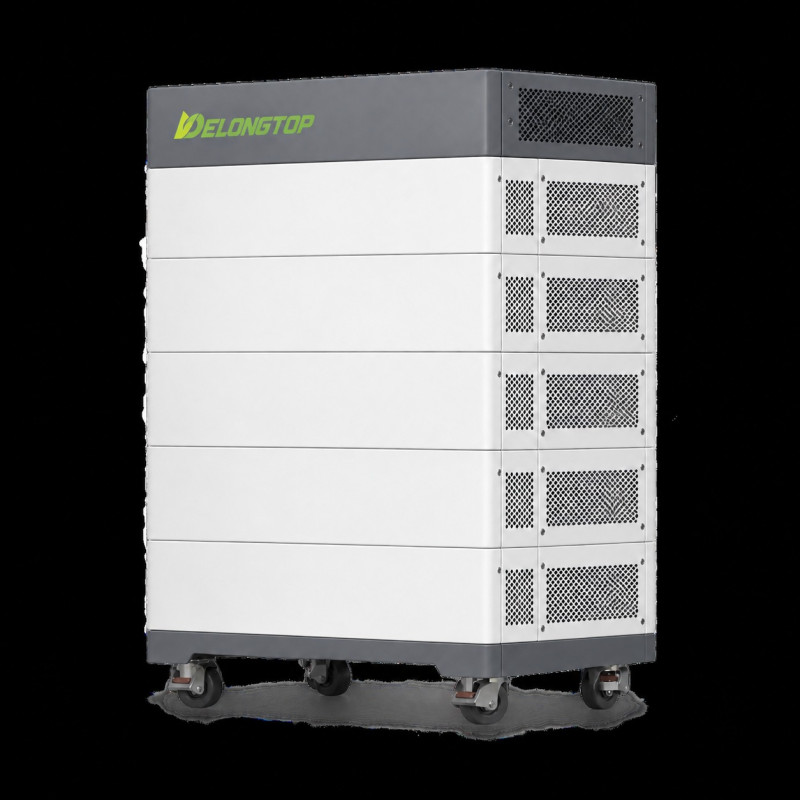

Complete 51.2 kWh high-voltage storage system

LFP-HV32-10 combines five battery modules with a control unit. Its 512 V nominal voltage and CAN/RS485 communication support powerful storage projects with compatible hybrid inverters.

Specifications

• LiFePO4, 51.2 kWh, 512 V / 100 Ah
• 480–560 V operating range
• 30 A standard current, 50 A maximum output
• round-trip efficiency at least 95%
• CAN and RS485
• IP20, −10 to +50 °C
• 780 × 520 × 1085 mm
• approximately 497 kg

The high-voltage system must be designed and installed by qualified personnel. Inverter compatibility, protection, cabling, placement and complete configuration are confirmed before ordering.
