BYD Battery-Box HVE wall-mounting bracket article 17846408-00 is the optional original structural package for mounting a documented HVE battery system on a suitable load-bearing wall. It stores no energy and contains no electrical control equipment.

Exact compatibility and dimensions

• Manufacturer article: 17846408-00
• Compatible family: BYD Battery-Box HVE
• Bracket dimensions: 660 × 176 × 145 mm
• Mounting mode: wall installation of a documented HVE system
• Not for HVB, original HVS/HVM, HVS+/HVM+ or another battery family

Verified package scope

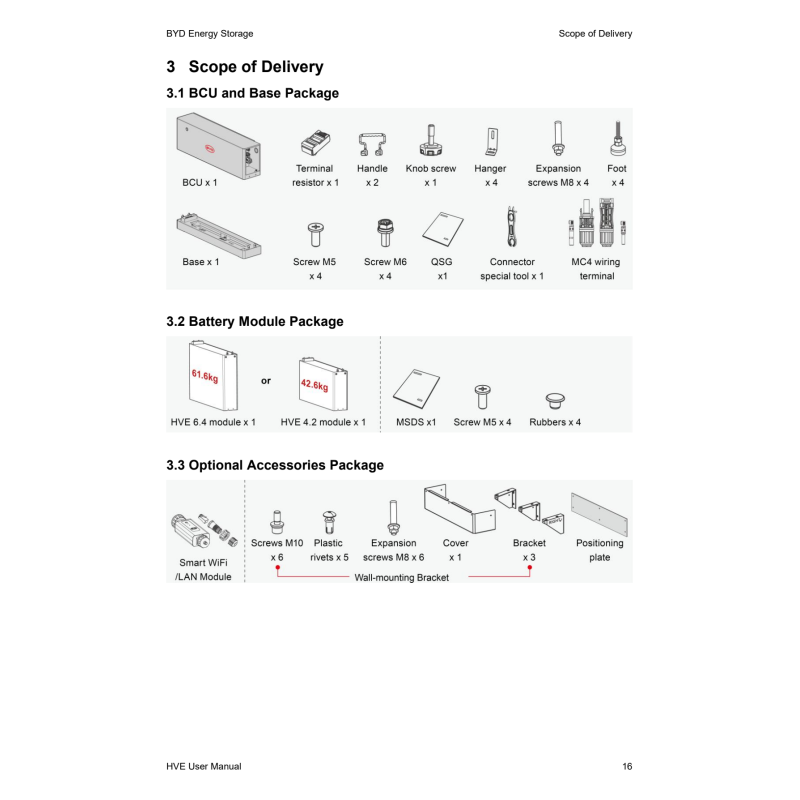

The official HVE manual lists one cover, three brackets, one positioning plate, six M10 screws, five plastic rivets and six M8 expansion screws. WodaSign™ confirms article 17846408-00, sealed scope, revision, lead time and remaining warranty before order acceptance.

Installation requirements

The complete HVE tower load and the wall/substrate must be checked by qualified personnel. The manufacturer instructions require a suitable load-bearing wall, prohibit tilted installation and show the wall package as optional. Packaged expansion screws are not automatically suitable for every substrate; project-specific anchoring, fire behaviour, clearances and local rules must be verified before drilling.

Not included

HVE battery modules, HVE BCU and base, inverter, electrical protection, project cabling, structural reinforcement, substrate-specific anchors, design, installation and commissioning are separate.
