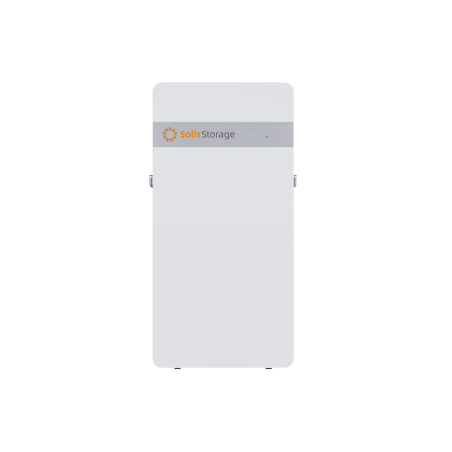

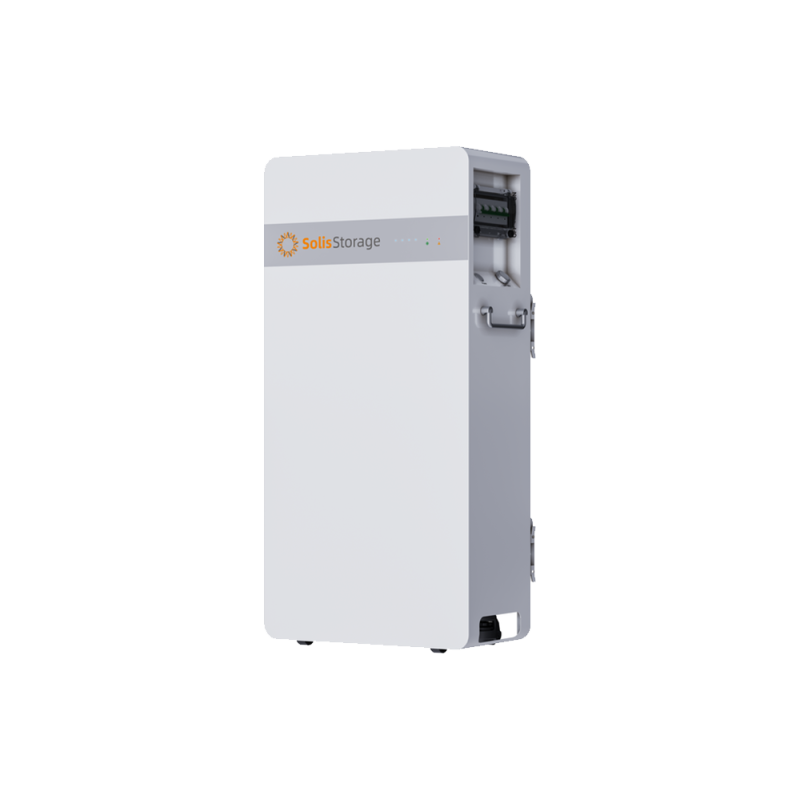

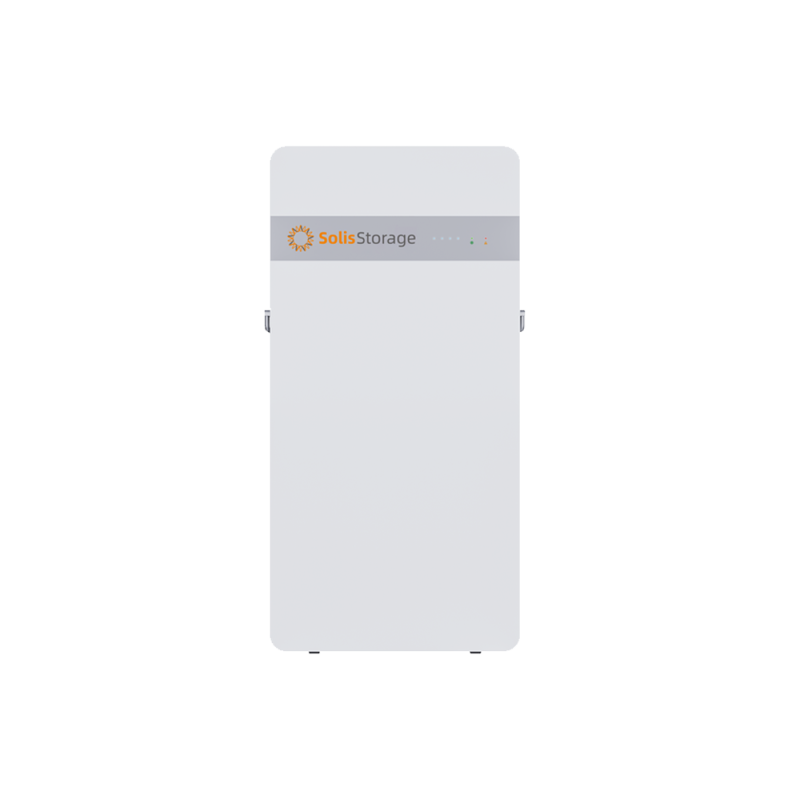

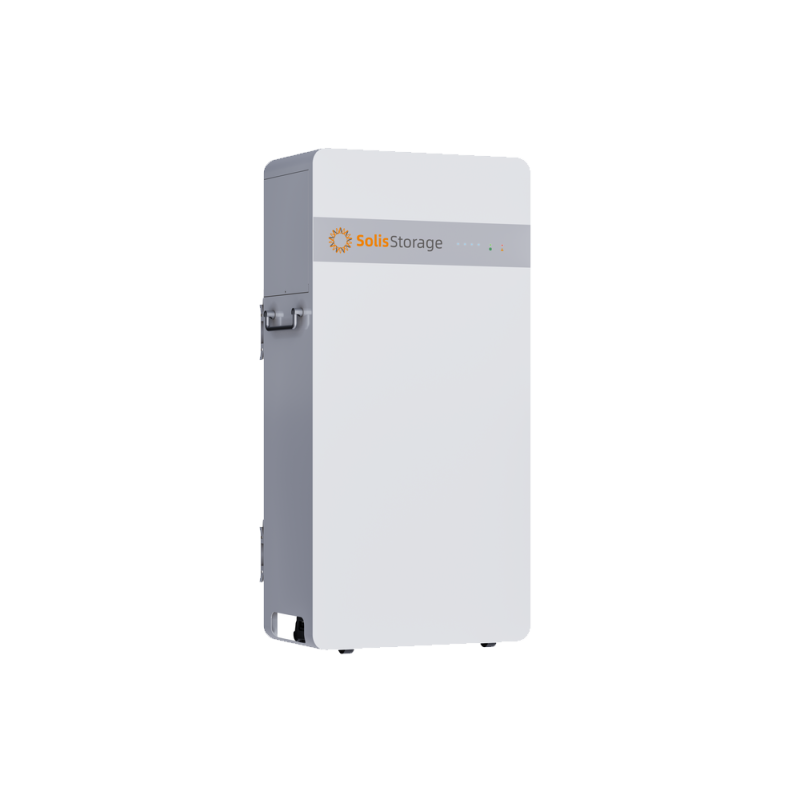

Solis IntelliHome-16kWh-OD is a complete 16 kWh low-voltage LiFePO4 battery for larger residential solar-storage and backup systems. Its IP66 enclosure integrates cells, battery management, DC breaker, status indication and communications in one floor- or wall-mounted unit.

Key technical data

• Nominal and usable energy: 16.0 kWh
• Cell chemistry: LiFePO4
• Nominal voltage: 51.2 V DC
• Operating range: 44.8–57.6 V DC
• Cell capacity: 314 Ah
• Recommended charge/discharge rate: 0.5C / 0.5C
• Recommended and maximum continuous charge/discharge current: 157 A
• Depth of discharge: up to 100% DOD
• Communication: CAN / RS485
• Protection: IP66; anti-corrosion class C5M
• Dimensions: 470 × 950 × 264 mm
• Weight: 122 ± 3 kg
• Cooling: natural convection

Expandable complete battery

One enclosure is a usable battery, not a loose module. Up to eight identical units may form an engineered 128 kWh parallel system. The current Solis manual states at least 6,000 cycles under its defined cell-test conditions; operating temperature, power, depth of discharge and use profile affect real life.

Installation and compatibility

Use only with a compatible Solis low-voltage hybrid inverter and approved firmware and wiring. At approximately 122 kg, mechanical handling and a verified wall or floor structure are essential. A qualified designer must confirm clearances, cable sizes, protection, communications and parallel layout. Charging down to −20 °C requires the heating function; derating applies above 45 °C.

Scope

This product is one IntelliHome-16kWh-OD battery unit. Hybrid inverter, external protection, metering, project cabling, structural work, transport to the final position, installation and commissioning are separate unless included in a project quotation.

and . Browse complete battery systems.
