BOYI HP ultra11048A – hybrid solar inverter 11 kW 230 V

The HP ultra11048A variant provides 11 kW in the specified configuration. Compare the range using this capacity or output, dimensions and current ratings. This version has 2 MPPT trackers and supports array design up to 15 kW within the input limits.

Technical specifications

The supplier states maximum efficiency of 98%, transfer time of 10 ms, parallel operation of up to six units and a five-year warranty. These are supplier-documentation ratings used within the instructions for the specific version.

Solar and backup power

A solar inverter brings photovoltaic panels, a low-voltage battery and AC loads together in a managed energy system. It suits professionally designed backup and off-grid installations, workshops and premises using their own solar generation. Choose the rating from the loads that will operate simultaneously and their starting requirements. The hybrid architecture works with energy sources in the modes available for the delivered version. The final wiring arrangement follows the documentation, backup concept and local installation requirements. Careful system selection connects useful output power with storage and solar production.

Photovoltaic inputs and MPPT

MPPT control tracks a suitable operating point for the photovoltaic panels within the inverter input limits. The tracker count matters when dividing arrays with different orientations. String design considers open-circuit voltage at low temperature, operating voltage and panel current. The specified maximum connected photovoltaic rating is assessed alongside the complete input voltage and current limits. Correct sizing helps make useful use of morning and afternoon production and supports stable regulation. The installer chooses the string arrangement from the actual panel characteristics and the intended energy balance of the system.

Battery and BMS

The battery branch uses a nominal 51.2 V architecture with a stated 40–60 V operating range. Choose a battery with appropriate current capability and a matching charge profile. BMS communication support is completed during installation by checking the specific protocol and cable pin assignment. Charge current is configured for the battery, protective devices and cabling. Higher output requires assessment of the full DC circuit, since a low-voltage system carries substantial current. Correct matching makes stored energy useful for the chosen loads and allows the operating limits of both battery and inverter to be coordinated.

Output power and loads

The 230 V AC output supplies single-phase loads at the configured 50 or 60 Hz frequency. Distinguish rated active power from the starting and reactive requirements of particular equipment. List the essential loads and their combined consumption when designing a backup branch. Starting loads are checked against the equipment and instructions for the delivered version. The designer specifies circuit distribution, protection and transfer arrangements so that the system suits actual use. This creates a practical power design for lighting, electronics, pumps and other selected equipment according to their measured requirements.

Display and monitoring

The LCD supports local inspection of operating values and settings. The USB, RS485 and Wi-Fi interfaces stated in the technical material provide the basis for monitoring according to the delivered configuration. Record operating mode, current limits and battery settings at commissioning. Review status messages and available operating history periodically. A suitable monitoring arrangement helps distinguish solar production, charging and consumption and supports service checks. Settings are configured professionally for the complete installation, with access and maintenance arrangements appropriate to the site and the owner.

Location and cooling

The IP21 protection rating and forced-air cooling define the need for a protected installation location and unobstructed airflow. Allow adequate space around the inverter and its cable routes. The supporting structure must suit the weight and mounting points of the supplied version. Consider temperature, dust and maintenance access when placing the equipment. The variable-speed fan removes operating heat according to the cooling design. Regular inspection of cleanliness and electrical connections is a useful part of maintenance together with review of settings and status messages. Appropriate placement supports convenient servicing and everyday operation.

Professional system design

Installation is carried out by a qualified professional according to the documentation and applicable site requirements. The design includes DC and AC protection, earthing, surge protection and safe isolation. Parallel operation follows the supported wiring and synchronisation arrangement for the specific equipment. Operation that can export into a distribution network requires a separate assessment of model, firmware, protection settings and the network operator conditions. In system design, the general term hybrid inverter is combined with the correct operating mode and electrical topology for the intended use.

Delivery and model selection

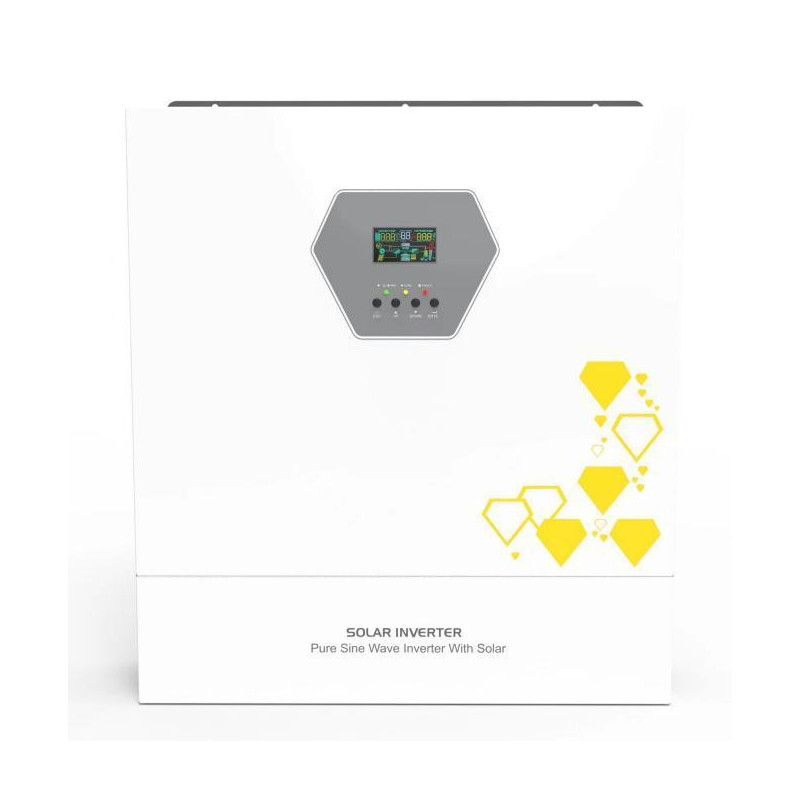

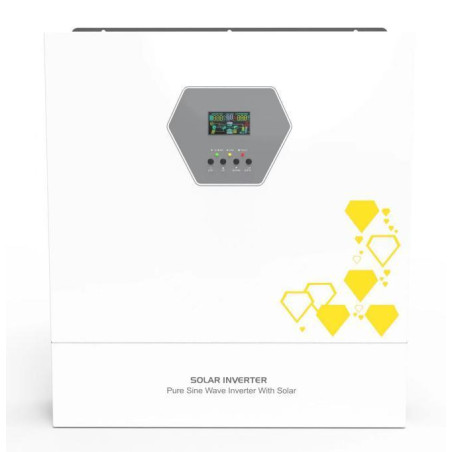

The inverter is available to order through the China supply route. Estimated total delivery is 29–59 days, a planning allowance for production and transport. Select the exact model using its rated output, MPPT count and battery range. The photograph corresponds to the model illustration in the supplier price list. Commissioning uses the instructions for the delivered version and the settings of the connected battery. Careful sizing and professional installation establish the basis for using photovoltaic generation and managed backup power. The complete system is planned around the actual load profile, access requirements and available installation space.

Certification specifically for the Czech Republic has not been verified.
