The energy centre for a home with PV, batteries and an EV

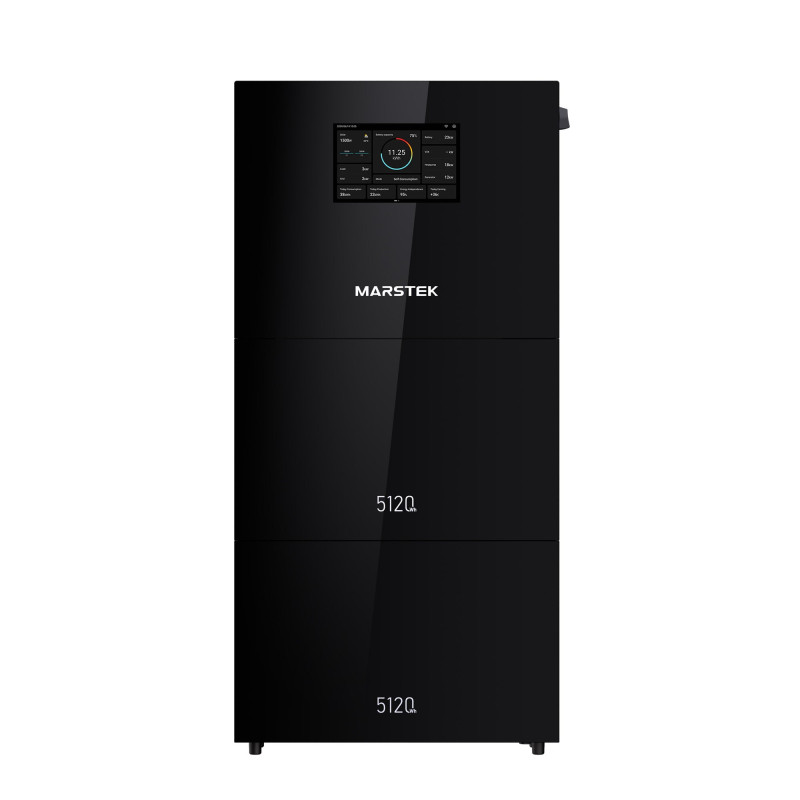

MARS I PLUS 12KTP combines a three-phase hybrid inverter, backup and local energy management. Its modular battery section supports capacities from 5.12 to 30.72 kWh.

Key specifications

• up to 12 kW three-phase hybrid power
• up to 24 kW PV input, four MPPTs and V-Boost up to 1,000 V
• backup transfer below 10 ms
• one to six 5.12 kWh battery modules
• support for up to 25 kW DC and 22 kW AC EV charging
• up to 12 kW V2X and SG-Ready heat-pump interface
• Wi-Fi, Bluetooth, Ethernet, CAN and RS485
• 10.1-inch display, IP65 and below 30 dB
• 628 × 195 × 498 mm, 55 kg

This system requires professional design and installation. Add the required number of MARS I PLUS 5.0KBAT modules and project-specific accessories separately.
