- New
Partial-storage comfort in a cabinet only 70 mm deep

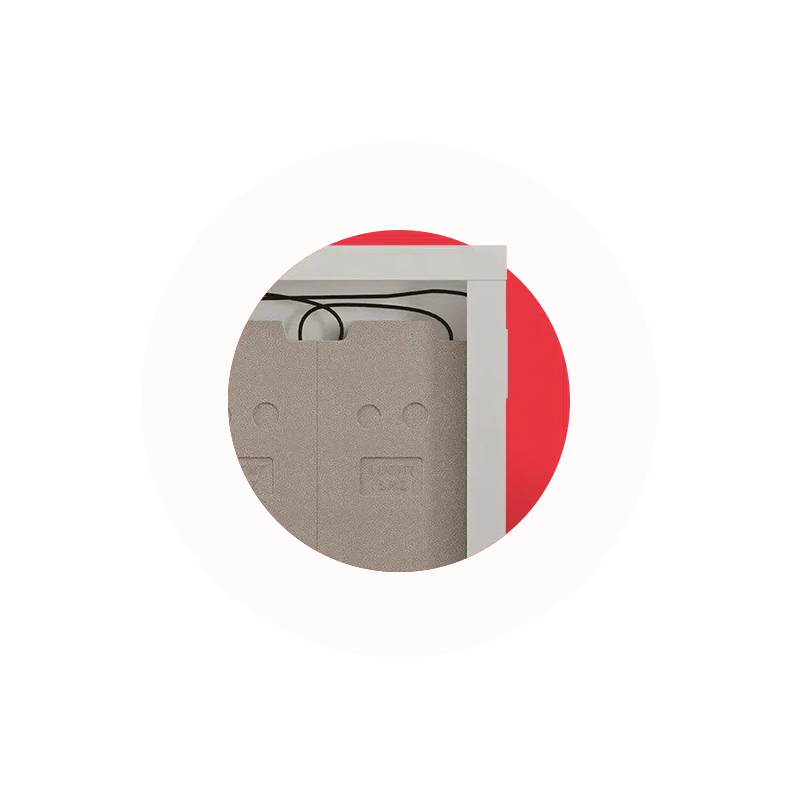

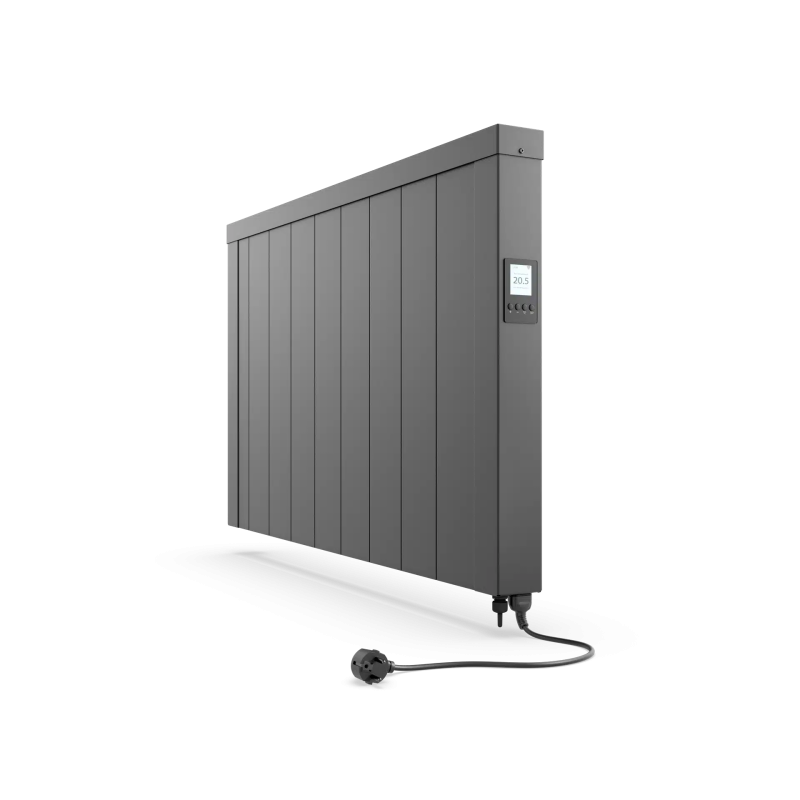

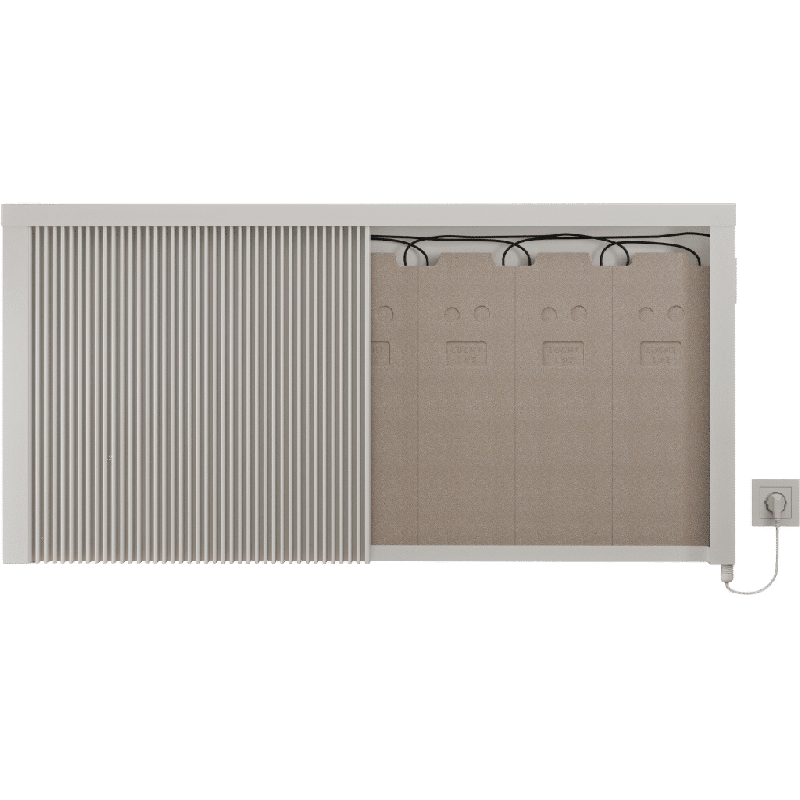

TECHNOTHERM TT-KS Flat 1000 S DSM Z combines rapid electric heating with partial storage in an integrated fireclay core. The core continues to release stored heat after electrical input stops. Radiant and convective heat work together to provide even room comfort from an exceptionally slim cabinet.
The DSM Z designation identifies the electronic DSM thermostat and anthracite finish. The manufacturer lists optional app control depending on the selected configuration. The heater is designed primarily for permanent wall mounting, with suitable feet available as an option. It uses a 230 V supply and includes a 1.5 m earthed connection cable.
Key benefits
- 1 kW rating for appropriately sized rooms based on calculated heat loss,
- integrated fireclay core for continued heat release after switch-off,
- combined radiant and convective heating,

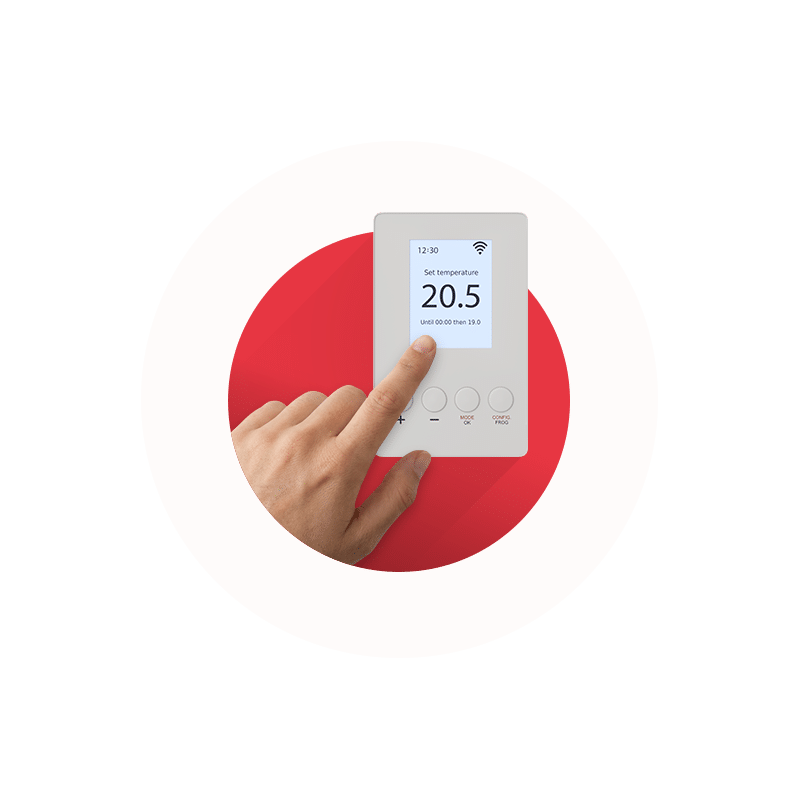

- precise electronic DSM thermostat,
- optional app control depending on configuration,
- anthracite powder-coated finish,
- cabinet depth of only 70 mm,
- wall mounting or optional installation on suitable feet,
- made in Germany by TECHNOTHERM / LUCHT LHZ.
Technical data
| Model | TT-KS Flat 1000 S DSM Z |
|---|---|
| Nominal input | 1.0 kW |
| Supply | 1/N/PE 230 V |
| Dimensions (W × H × D) | 680 × 630 × 70 mm |
| Weight | approximately 36 kg |
| Colour | anthracite |
| Surface | powder coated |
| Ingress protection | IP20 |
| Protection class | I |
| Connection cable | 1.5 m with earthed plug |
| Installation | wall; suitable feet available as an option |
| Thermostat | electronic DSM; optional app control depending on configuration |
| Manufacturer order number | 450610275 |
| Our reference | 450610275 |
Operating manual
DSM/DSD thermostat manual (PDF) is hosted directly on WodaSign.net.
Important: heater output must be selected from the room's calculated heat loss. Availability, final selling price and the exact control configuration should be confirmed against the current manufacturer quotation before ordering.
