Fast heat and short-term storage in one heater
TECHNOTHERM Dynamo 1500 S combines the quick response of an electric heater with the thermal inertia of two rows of fireclay storage blocks. It is purpose-designed to shift electricity use into periods when self-generated solar power or lower-cost grid energy is available. After registration, its factory-fitted Shelly 1PM Gen3 relay can be connected to Clever-PV for automatic switching based on measured PV surplus, price signals, schedules or the state of an optional battery.
The Shelly is not an external dealer-added accessory: the relay is built into the heater at the factory. The front-panel TTB electronic thermostat separately manages room temperature and weekly schedules. Remote room-temperature and programme control through TTi Smart Control is a separate comfort-control function; Clever-PV integration manages the storage circuit according to available energy.

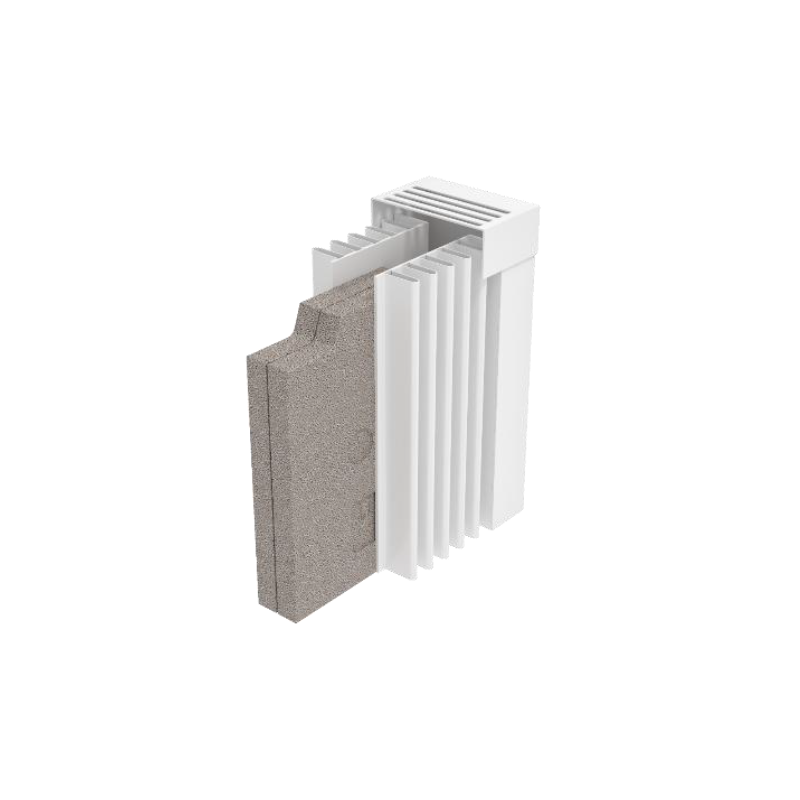

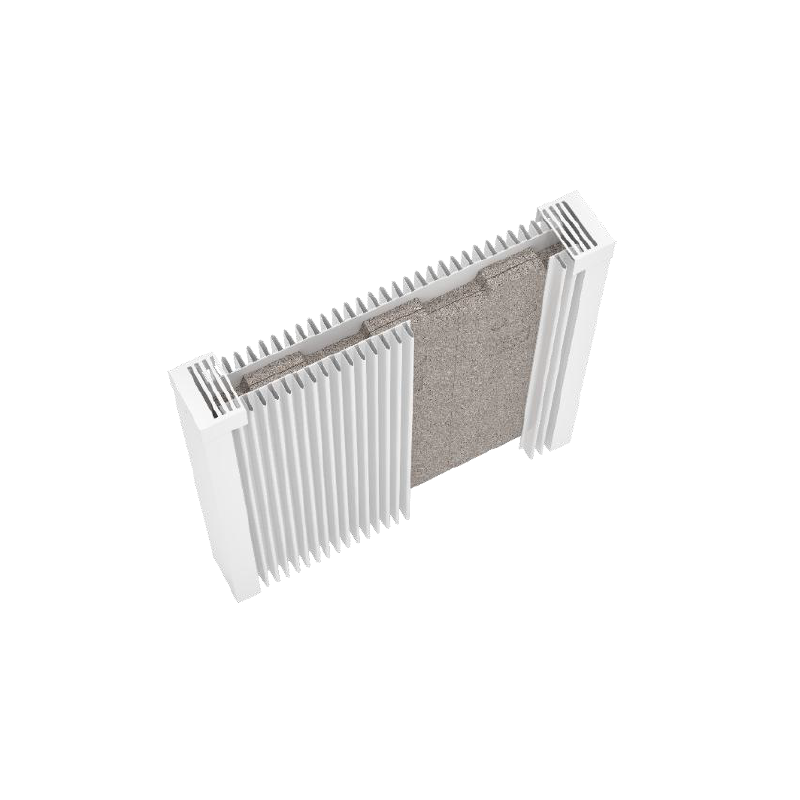

How the two storage zones work
Dynamo has two independent heating circuits. The front 1.5 kW HK1 circuit supplies heat during main occupancy periods, while the rear 1.5 kW HK2 circuit charges the storage section. For safety, the controls interlock the circuits so they cannot operate simultaneously. This keeps the active input to one circuit at a time, allows a faster response than a traditional large storage heater and still provides stored heat after electrical input has stopped. The manufacturer states heat carry-over of up to approximately three hours, depending on operating conditions.
Key benefits
- partial energy storage in two rows of fireclay blocks,
- factory-fitted Shelly 1PM Gen3 relay for energy-based control of the storage circuit,
- Clever-PV control based on PV surplus, electricity price, schedules or battery state,
- fast heat-up followed by gradual heat release,
- up to approximately three hours of heat carry-over without input, according to the manufacturer,
- electronic thermostat and automatic control,
- weekly programme, Comfort, Eco and Frost Protection levels, open-window detection and adaptive start,
- remote TTi Smart Control room control when configured with a Smartbox,
- slim 12 cm depth,
- made in Germany by TECHNOTHERM / LUCHT LHZ.
Technical data
| Model | Dynamo 1500 S EU |
|---|---|
| HK1 / HK2 rating | 1.5 kW / 1.5 kW; circuits are mutually interlocked |
| Storage core | two rows of fireclay blocks |
| Surplus control | built-in Shelly 1PM Gen3 relay, Clever-PV integration |
| Heating circuits | HK1 for main heating, HK2 for storage charging; mutually interlocked |
| Heat carry-over | up to approximately 3 hours without input, according to the manufacturer |
| Communication | 868 MHz |
| Mounting | wall-mounted; two vertical U-rails at 800 mm centres |
| Dimensions (W × H × D) | 980 × 630 × 120 mm |
| Weight | approximately 63 kg |
| Manufacturer order number | 452615210 |
| Our reference | 200-001071 |
PV integration
The Shelly 1PM Gen3 relay is built into the heater. During commissioning it is first registered in the Shelly app, integrator access is enabled and the Shelly account is then linked to Clever-PV. In Clever-PV, the heater is added as a smart-controlled switch. The storage circuit can then be managed by schedules, target times, electricity price signals, measured solar surplus or the state of a connected battery store.
Clever-PV is a third-party service and is not included with the heater. Operation from actual surplus requires compatible metering or PV-system data. The heater's power connection and commissioning must be performed by a qualified professional. The three-hour figure is a manufacturer maximum; actual carry-over depends on core temperature, settings, room conditions and building heat loss.
